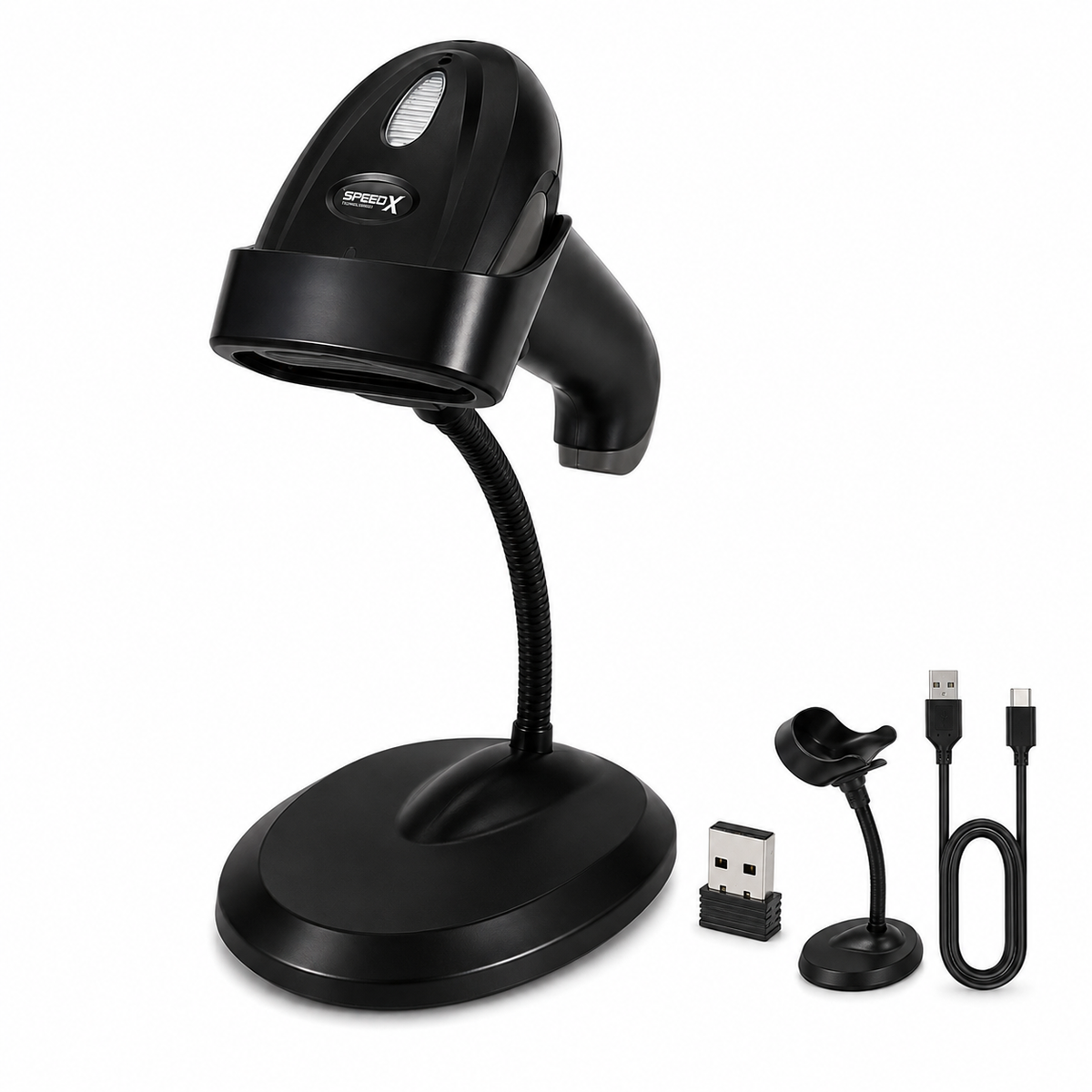

Speed-X 60D 2D Wireless Barcode Scanner 2.4GHz with Stand

The Speed-X 60D 2D Wireless Barcode Scanner is a versatile handheld barcode reader designed for retail stores, POS counters, warehouses, inventory management, offices, pharmacies and other business environments. With 2.4GHz wireless connectivity, the scanner provides convenient cordless operation while its included stand offers a practical option for hands-free scanning.

Powered by a CMOS array image sensor with 648 × 488 pixel resolution, the Speed-X 60D supports both 1D and 2D barcode scanning, including QR Code, Data Matrix, PDF417, Micro QR Code, Aztec Code, HanXin and many commonly used 1D barcode formats.

The scanner offers a wireless transmission range of up to 30 meters in an open area and supports a data rate of up to 1Mbps. Its 1500mAh rechargeable lithium battery provides cordless operation, while the scanner can operate in both Read-Time Mode and Inventory Mode for different scanning requirements.

With internal memory capable of storing up to 100,000 barcode records at 13 bytes per barcode, the Speed-X 60D can be used for inventory and batch-scanning workflows where data needs to be collected before transmission.

Its ergonomic handheld design features a white LED light source and red bar aiming light, helping users position the scanner over different barcode types. Wide scanning angles and support for both 1D and 2D symbologies make it suitable for a variety of everyday scanning applications.

Key Features

• Speed-X 60D 2D Wireless Barcode Scanner
• 2.4GHz wireless communication
• Wireless range up to 30m in open areas
• Supports 1D and 2D barcode scanning
• Reads QR Code, Data Matrix, PDF417 and more
• CMOS array image sensor
• 648 × 488 pixel sensor resolution
• White LED illumination
• Red bar aiming light
• Up to 100,000 barcode memory capacity
• 1500mAh rechargeable lithium battery
• USB HID Keyboard / wireless receiver interface
• Read-Time Mode and Inventory Mode
• Wide scanning angles
• Up to 1Mbps data rate
• Includes a stand
• Ergonomic handheld design
• 1.5m drop test onto concrete
• Suitable for retail, POS, warehouse and inventory applications

3. Barcode Compatibility

1D Barcode Support

The Speed-X 60D supports a wide range of 1D barcode formats, including:

• Codabar
• Code 128
• Code 11
• Code 32
• Code 39
• Code 93
• EAN-8
• EAN-13
• EAN/UPC
• UPC-A
• UPC-E
• GS1 DataBar Expanded
• GS1 DataBar Limited
• GS1 DataBar Omnidirectional
• Interleaved 2 of 5
• Industrial 2 of 5
• Matrix 2 of 5
• Pharmacode
• Telepen
• Trioptic Code
• RSS-14
• RSS-Limited
• RSS-Expanded
• China Post
• Hong Kong 2 of 5
• Composite

2D Barcode Support

Supports various 2D barcode formats including:

• QR Code
• Micro QR Code
• Data Matrix
• PDF417
• MicroPDF417
• Aztec Code
• HanXin Code
• MaxiCode
• Codablock F
• DotCode

4. Wireless & Memory

The Speed-X 60D wireless barcode scanner uses 2.4GHz communication with a frequency range of 2.402–2.480GHz.

Wireless Specifications

Communication: 2.4GHz
Frequency: 2.402–2.480GHz
Transmission Range: Up to 30m in open area
Data Rate: 1Mbps
Communication Modes: Read-Time Mode / Inventory Mode
Memory: Up to 100,000 barcode records at 13 bytes per barcode

This makes the scanner suitable for applications where users need to move around a workspace while scanning products, stock, packages or inventory.

5. Battery & Charging

The scanner is equipped with a 1500mAh rechargeable lithium battery.

Battery Capacity: 1500mAh
Battery Type: Lithium Battery
Charging Time: Approximately 4.5 hours

The supplied specifications indicate approximately 4 hours of continuous reading, around 9.5 hours under manual reading conditions, and more than 15 days of standby time. Actual battery performance may vary depending on usage and operating conditions.

6. Technical Specifications

• Model: Speed-X 60D
• Product Type: 2D Wireless Barcode Scanner
• Wireless Technology: 2.4GHz
• Wireless Frequency: 2.402–2.480GHz
• Transmission Range: Up to 30m in open area
• Data Rate: 1Mbps
• Memory: Up to 100,000 barcode records
• Battery: 1500mAh Lithium Battery
• Charging Time: Approximately 4.5 hours
• Battery Working Time: Up to 4 hours continuous scanning / approximately 9.5 hours manual scanning
• Standby Time: More than 15 days
• Communication Modes: Read-Time Mode / Inventory Mode
• Sensor: CMOS Array Sensor
• Sensor Resolution: 648 × 488 Pixels
• Light Source: White LED
• Aiming Light: Red Bar LED
• 1D Minimum Resolution: 4 mil
• 2D Minimum Resolution: 10 mil
• Field of View: 46° Horizontal / 35° Vertical
• Interface: USB HID Keyboard / Wireless Receiver
• Scanning Angle: Pitch ±60°, Skew ±60°, Tilt ±180°
• Scanner Dimensions: 95 × 70 × 168mm
• Wireless Receiver Dimensions: 83 × 18 × 13mm
• Scanner Weight: Approximately 186g
• Receiver Weight: Approximately 16g
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Operating Humidity: 20%–85%
• Storage Humidity: 20%–95%
• Drop Resistance: 1.5m drop onto concrete
• Ambient Light: Up to 4,000 lux fluorescent/white light and up to 80,000 lux direct sunlight
• Stand: Included

7. Scanning Performance

The Speed-X 60D supports reliable scanning across different barcode types and distances:

• Code 39: 20 mil — scanning distance approximately 5.5cm to 35cm
• Code 128: 15 mil — scanning distance approximately 6cm to 31cm
• EAN-13: 13.34 mil — scanning distance approximately 6cm to 25cm
• QR Code: 20 mil — scanning distance approximately 4cm to 21cm
• PDF417: 13.34 mil — scanning distance approximately 3cm to 29cm

8. Ideal For

The Speed-X 60D is suitable for:

• Retail stores
• POS counters
• Supermarkets
• Warehouses
• Inventory management
• Stock checking
• Logistics
• Package scanning
• Offices
• Pharmacies
• Product identification
• Billing and checkout
• Business data collection
