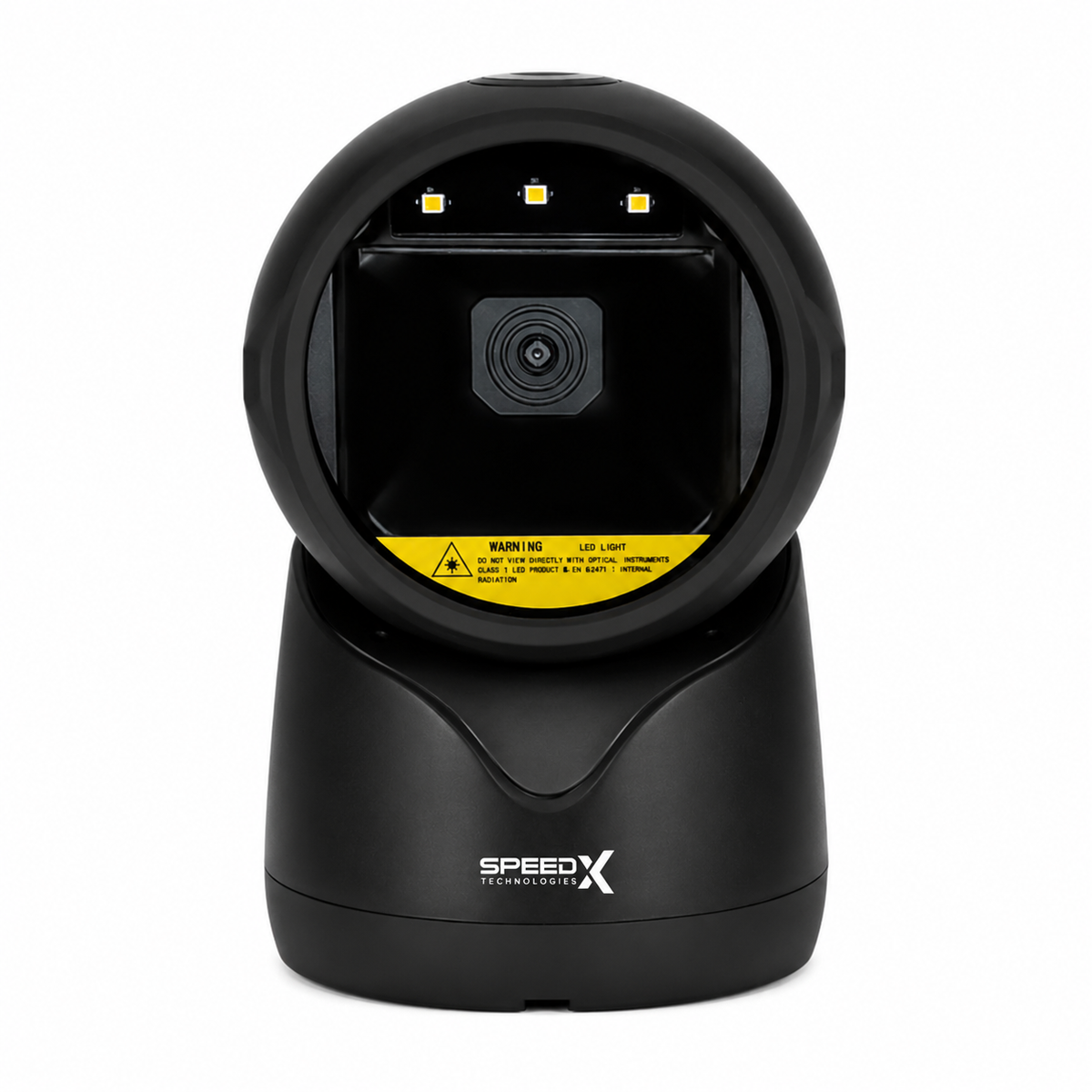

Speed-X 9600 2D Desktop Barcode Scanner – USB QR Code & Barcode Reader

The Speed-X 9600 2D Desktop Barcode Scanner is a fast and versatile barcode reader designed for retail stores, POS counters, supermarkets, warehouses, offices, pharmacies and other business environments. With support for both 1D and 2D barcode scanning, it provides a convenient solution for product identification, billing, inventory management and everyday data entry.

Equipped with a CMOS image sensor, 640 × 480 pixel resolution and 60 FPS decoding speed, the Speed-X 9600 is designed for quick and reliable barcode scanning. It can read popular 1D and 2D symbologies including QR Code, Data Matrix, PDF417, Aztec Code, UPC, EAN, Code 39, Code 128, GS1 and more.

The scanner supports USB HID Keyboard and USB VCP interfaces, making it suitable for connection with compatible computers, POS systems and other USB-enabled equipment. Its wide scanning angles help provide flexible scanning from different positions, while the beeper and LED indicator provide clear feedback during operation.

The Speed-X 9600 desktop barcode scanner features a compact counter-top design measuring 94 × 100 × 152 mm and weighing approximately 260g. It also supports multiple languages and custom data output, making it suitable for a variety of business workflows.

Key Features

• Speed-X 9600 2D Desktop Barcode Scanner
• Supports 1D and 2D barcode scanning
• Reads QR Code, Data Matrix, PDF417, Aztec Code and MaxiCode
• Supports popular UPC, EAN, Code 39, Code 128 and GS1 barcodes
• 60 FPS decoding speed
• CMOS image sensor
• 640 × 480 pixel sensor resolution
• Minimum resolution of 4 mil
• USB HID Keyboard / USB VCP interface
• White LED light source
• Multiple-language support
• Custom data output support
• Beeper and LED indicators
• Wide pitch, skew and tilt scanning angles
• 1.5m drop test onto concrete
• Compact desktop design
• Suitable for retail, POS, inventory and office applications

Technical Specifications

Model: Speed-X 9600
Product Type: 2D Desktop Barcode Image Scanner
Interface: USB HID Keyboard / USB VCP
Input Voltage: DC 5V ±5%
Maximum Current: 335mA
Image Sensor: CMOS Array Sensor
Sensor Resolution: 640 × 480 Pixels
Light Source: White LED
Decoding Speed: 60 FPS
Minimum Resolution: 4 mil
Field of View: 36° Horizontal / 27° Vertical
Scanning Angle: Pitch ±65°, Skew ±65°, Tilt ±360°
Indicator: Beeper & LED
Dimensions: 94 × 100 × 152 mm
Weight: Approximately 260g
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5%–95% RH, non-condensing
Drop Test: 1.5m onto concrete
Language Support: Multiple Languages
Data Editing: Custom data output supported

Supported 1D Barcodes

Codabar, Code 39, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post, GS1 Composite Codes, Codeblock A, Codeblock F, Code 32 and Korea Post.

Supported 2D Barcodes

PDF417, QR Code, Data Matrix, Aztec Code, HanXin Code, MaxiCode and Micro PDF417.

Scanning Performance

The Speed-X 9600 supports different scanning distances depending on the barcode type, size and resolution.

• Code 39, 5 mil: Approximately 10–90 mm
• Code 39, 13 mil: Approximately 0–175 mm
• UPC-A, 3.34 mil: Approximately 10–170 mm
• QR Code, 20 mil: Approximately 0–130 mm
• QR Code, 30 mil: Approximately 0–180 mm
• QR Pay Code: Up to approximately 320 mm depending on code size and conditions

Ideal For

• Retail stores
• Supermarkets
• POS and checkout counters
• Warehouses
• Inventory management
• Product scanning
• Pharmacies
• Offices
• Billing and data entry
• Business counters
• QR code and barcode scanning
